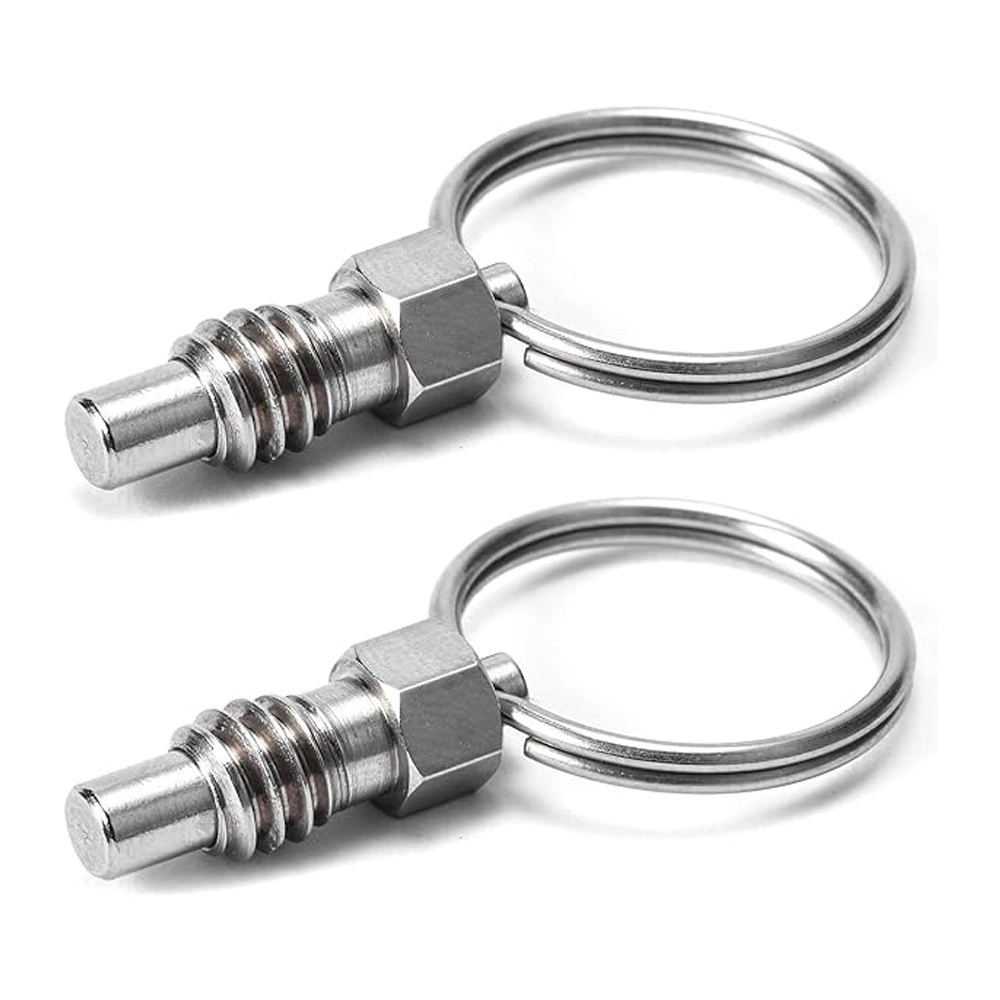

Retractable Spring Plungers Ring Pull Short 1

Retractable Spring Plungers Ring Pull Short 2

Retractable Spring Plungers Ring Pull Short 3

Retractable Spring Plungers Ring Pull Short

Ring Pull Spring Plungers are a great option for machining applications, and can be used for positioning, loading pins, alignment pins, and indexing devices. They provide a quick and convenient way to adjust or remove accessories on equipment.

These short retractable pins are perfect for confined spaces. They benefit from a lock-out feature, meaning the user can make final adjustments to equipment using two hands. The lock-out function keeps the pin plunger in an open (retracted) position - ideal for a hands-free environment. An anti-vibration lock patch is also available, which can be added on to threads.

Our pins come in two material options. Low Carbon Steel offers strength and durability at a low-cost, making it a good economical choice. The zinc plating finish provides good corrosion resistance. Stainless Steel provides high strength and hardness as well as superior corrosion resistance properties.

--Pin Material: Stainless Steel

--Plating: Plain and Clear Zinc

--No thread relief for 1/4-20 series

Inquiry

Write a Review

Product Details

plunger s4

plunger s5

plunger s6

Product Description

Used as positioning and indexing devices or as loading and alignment pins.

These sping action pins are available in several popular styles , common sizes and material.

Some styles available with lock out feature allowing free movement adjustment until automatic indexing is desired.

--Short pull ring is activated by pull motion.

--Hex nut is optional.

--Material is available in steel zinc plated or stainless steel.

--Customization is available.

Product Application

ap 1 (24)

ap 2 (24)

FAQ

How can I customize my products?

Attach your drawings with details(Surface treatment,material,quantity and special requirements etc).

How long can I get the quote?

We will give you the quotation within 24 hours(Considering the time difference).

How can I get a sample for testing?

We will offer free or charged samples depends on the products.

How long will you produce the parts?

Normally three weeks,we will arrange the produce schedule depends on the quantity and the delivery.

What is the expected lifespan or durability of the product?

Our product has an expected lifespan of 3 years and is designed to withstand heavy use in industrial environments.

What shipping documents before shipment

A: Dimension reports, some high tolerance parts with Zeiss CMM report
B: COC
C: Material cert
D: Some parts with hardness test report
E: some parts with salt spray test report

What's your payment terms?

We accept Western Union or Paypal for small account, big amount, T/T is preferred.

How about the transportation?

Samples by air (if not too heavy),otherwise by sea or air.

What is your company's policy on returns and refunds?

We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.

What is your company's experience and reputation in the industry?

Our company has been in business for 25 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
