T Handle Double Acting Ball Lock Pin

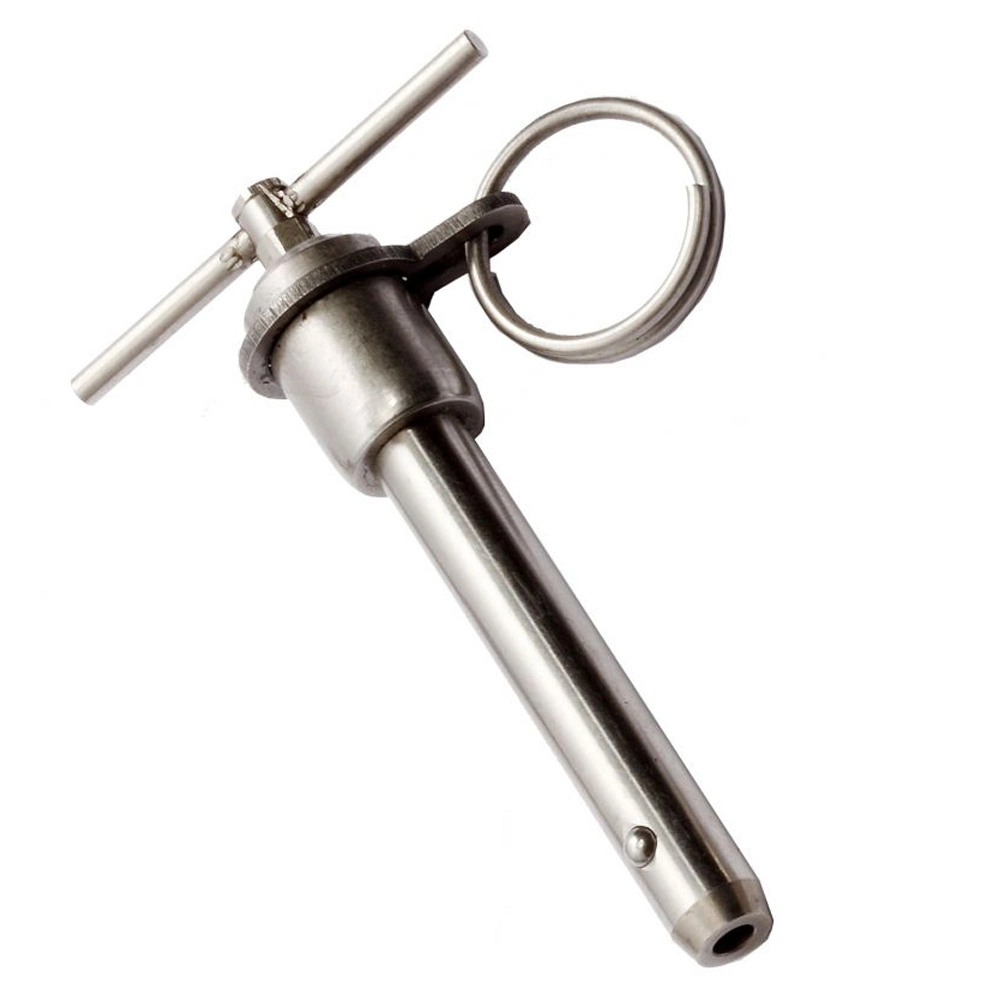

HKAA Double Acting T-Handle Quick-Release Pins are ideal for quick insertion and removal and are activated by push or pull motion. Their T-handle configuration provides a firm, even grip for smooth comfortable operation. The stainless steel construction and smart engineering of our Ball Lock Pins resist corrosion in harsh environments. Experience quick, easy positive engagement and high holding strengths for applications requiring frequent, repetitive use.

Material:

Handle: 303 Stainless Steel

Button: 303 Stainless Steel

Pin Body: Heat Treated 17-4 PH Stainless Steel

SPECS: MS17988 & NAS1353-NAS1366

Meets or exceeds NASM 23460 specifications

Includes split ring for easy attachment of an optional lanyard

May be ordered with (4) locking balls for additional locking element tensile strength.

Special materials, grip length, and longer “C” dimensions upon request.

Inquiry

Write a Review

Product Details

T Handle Pin 4

T Handle Pin 5

T Handle Pin 6

Product Description

Double-Acting Ball Lock Pins are positive locking until released by either pushing or pulling the center spindle, which is connected to the handle. Pushing on the handle releases the balls and inserts the pin in one motion. Pulling on the handle releases the balls and removes the pin in one motion. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank and positive locking. Choice of three handle styles: Ring (R), T, and L.

Available in pin diameters from 3/16 to 1" (5 to 20mm in metric), in stainless steel only. All Double-Acting Ball Lock Pins are made to order, with standard grip lengths for each diameter listed by handle style on the pages below. Pins with special grip lengths up to 12” (300mm) and other special features can also be quickly made to order.

--Four ball options available upon request.

--Meets or exceeds MS17988, MS17989, MS17990, NASM 23460 specification.
