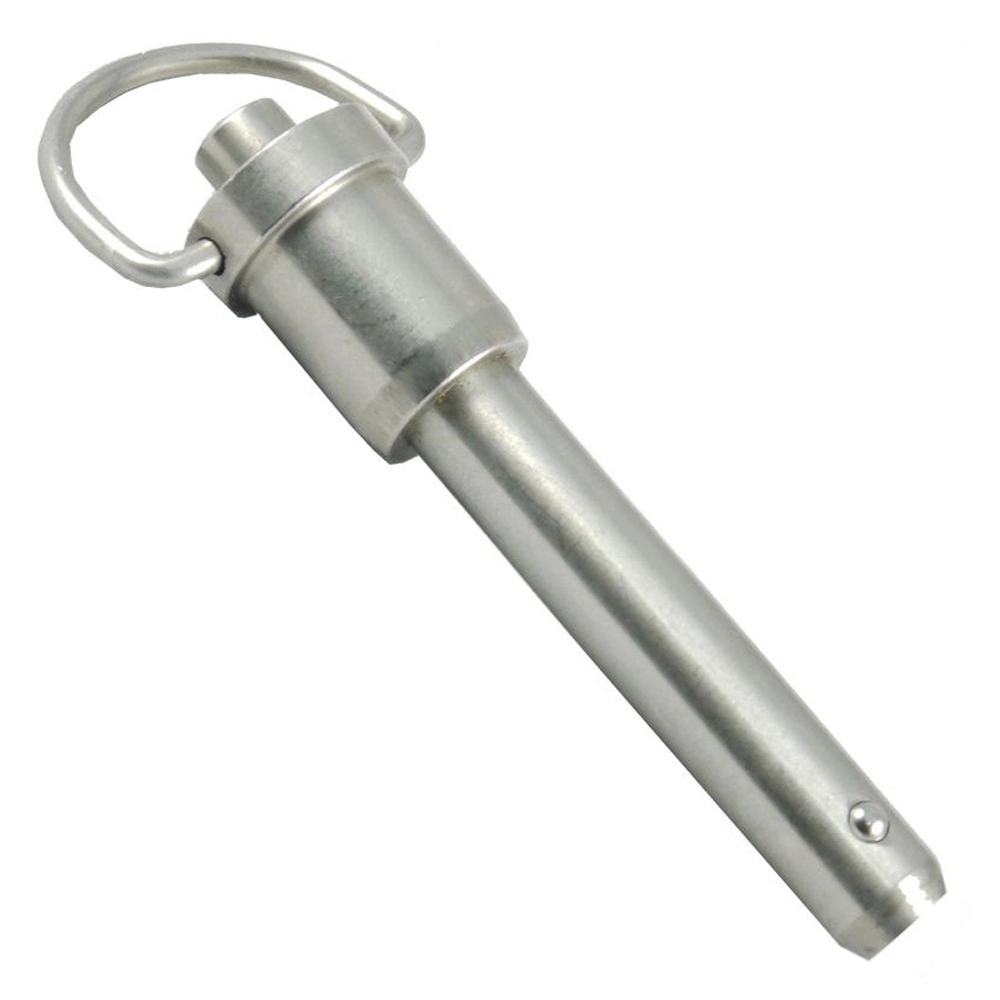

Stainless Steel Ring Handle Locking Pin pull knob quick release pins with D ring 1

Stainless Steel Ring Handle Locking Pin pull knob quick release pins with D ring 2

Stainless Steel Ring Handle Locking Pin pull knob quick release pins with D ring 3

Stainless Steel Ring Handle Locking Pin pull knob quick release pins with D ring

MATERIAL

Body - 17-4 PH Grade Stainless Steel

Handle and Button - 303 Grade Stainless Steel

Key Ring Supplied

Often referred to as Ball Lock pins, Kwik Release pins or Positive Locking Pins precison made to tight tolerances.

Double-Acting Ball Lock Pins are positive locking until released by either pushing or pulling the center spindle, which is connected to the handle. Pushing on the handle releases the balls and inserts the pin in one motion. Pulling on the handle releases the balls and removes the pin in one motion. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank and positive locking.

Often used with a wire rope lanyard assembeldd onto the handle ring to insure the pins remain affixed to the product they are being used on.

Inquiry

Write a Review

Product Details

R handle 4

R handle 5

R handle 6

Product Description

--Handle is stainless steel.

--Button is stainless steel.

--Shank is stainless steel.

--Includes hole and split ring for easy attachment of optional lanyard.

--Customization is available.

--Four ball option is available upon request.

--Meets or exceeds NASM 23460 specification.

--Meets or exceeds design specification MS 17987.

The pins or shanks of these quick release pins, similar to other Quick Release Pins within HKAA extensive range, are made from 17-4 PH stainless steel. This superior material choice excels in applications demanding heightened shear strength, surpassing the capabilities of conventional steel or stainless steel pins. The aluminium handle has a pre-attached key ring, enabling easy attachment of lanyards or retaining cables, conveniently available from HKAA.

Product Application

ap 1 (13)

ap 2 (13)

FAQ

How can I customize my products?

Attach your drawings with details(Surface treatment,material,quantity and special requirements etc).

How long can I get the quote?

We will give you the quotation within 24 hours(Considering the time difference).

How can I get a sample for testing?

We will offer free or charged samples depends on the products.

How long will you produce the parts?

Normally three weeks,we will arrange the produce schedule depends on the quantity and the delivery.

What is the expected lifespan or durability of the product?

Our product has an expected lifespan of 3 years and is designed to withstand heavy use in industrial environments.

What shipping documents before shipment

A: Dimension reports, some high tolerance parts with Zeiss CMM report
B: COC
C: Material cert
D: Some parts with hardness test report
E: some parts with salt spray test report

What's your payment terms?

We accept Western Union or Paypal for small account, big amount, T/T is preferred.

How about the transportation?

Samples by air (if not too heavy),otherwise by sea or air.

What is your company's policy on returns and refunds?

We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.

What is your company's experience and reputation in the industry?

Our company has been in business for 25 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

Do You Have Any Questions? Contact Us Now.

We can offer a one-stop station service, and support the latest in CNC machining and turning processes, can support a high level of part complexity, and provide exceptional surface finishes.
