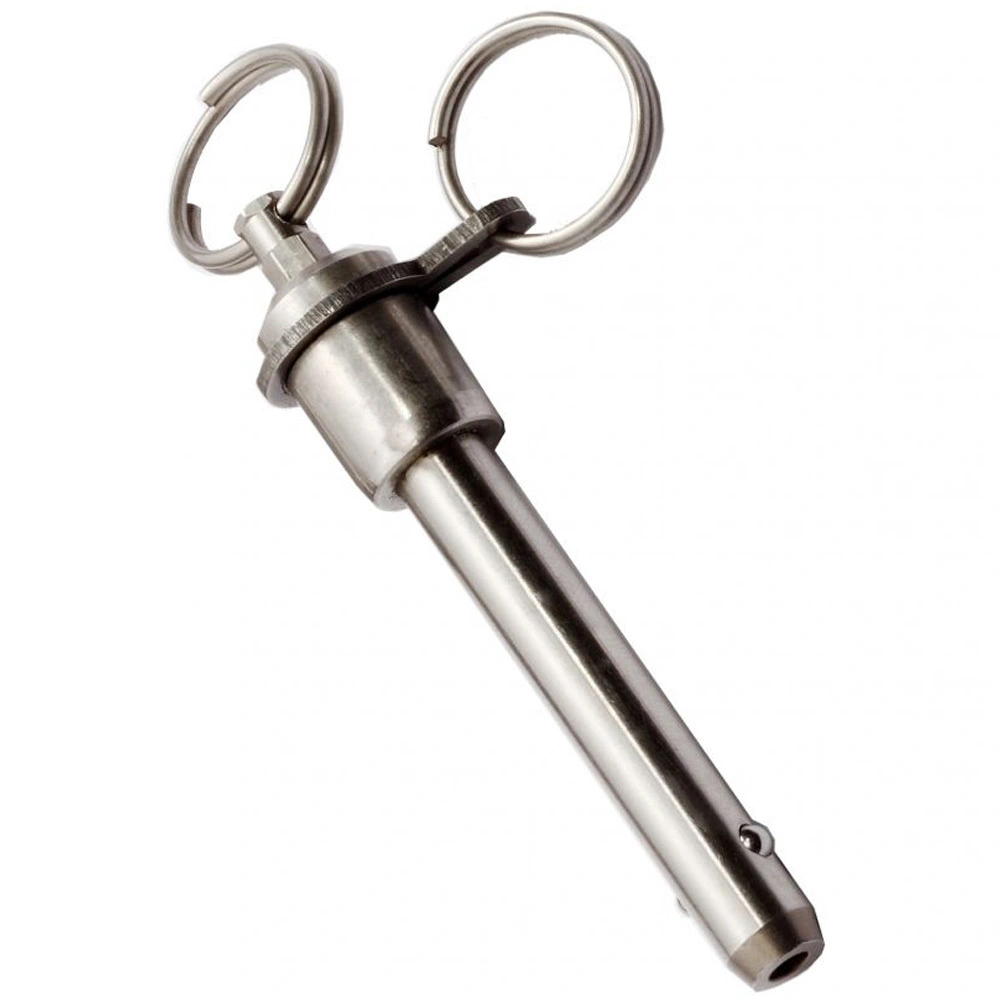

R Handle Double Acting Quick Release Pin 1

R Handle Double Acting Quick Release Pin 2

R Handle Double Acting Quick Release Pin 3

R Handle Double Acting Quick Release Pin

R Handle Double Acting Ring Handle Pins are ideal for quick insertion and removal and are activated by push or pull motion. Their ring handle configuration is designed for applications that require a small clearance area around the pin. The stainless steel construction and smart engineering of our HKAA® Pins resist corrosion in harsh environments. Experience quick, easy positive engagement and high holding strengths for applications requiring frequent, repetitive use.

Material:

Handle: 303 Stainless Steel

Button: 303 Stainless Steel

Pin Body: Heat Treated 17-4 PH Stainless Steel

SPECS: MS17990 & NAS1353-NAS1366

Meets or exceeds NASM 23460 specifications

Includes split ring for easy attachment of an optional lanyard

Inquiry

Write a Review

Product Details

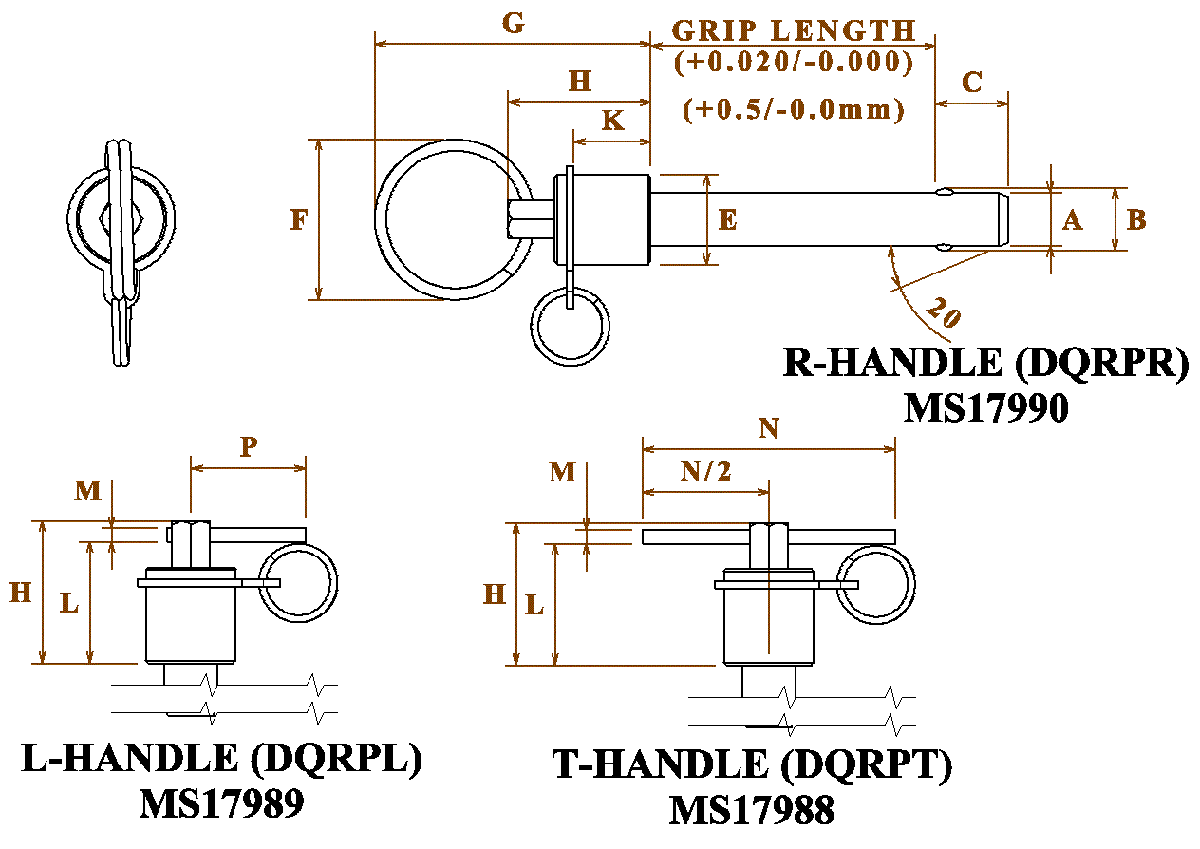

R handle pin 4

R handle pin 5

R handle pin 6

Product Description

Double-Acting Ball Lock Pins are positive locking until released by either pushing or pulling the center spindle, which is connected to the handle. Pushing on the handle releases the balls and inserts the pin in one motion. Pulling on the handle releases the balls and removes the pin in one motion. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank and positive locking.

--Double acting pins are activated by push and pull motion.

--All stainless steel construction provides additional corrosion resistance.

--Shank is made from high strength stainless steel 17-4 PH heat treated.

--Includes hole and split ring for easy attachment of optional lanyard.

--Customization is available.

--Four ball options available upon request.

--Meets or exceeds MS17988, MS17989, MS17990, NASM 23460 specification.

Product Application

ap 1 (14)

ap 2 (14)

FAQ

How can I customize my products?

Attach your drawings with details(Surface treatment,material,quantity and special requirements etc).

How long can I get the quote?

We will give you the quotation within 24 hours(Considering the time difference).

How can I get a sample for testing?

We will offer free or charged samples depends on the products.

How long will you produce the parts?

Normally three weeks,we will arrange the produce schedule depends on the quantity and the delivery.

What is the expected lifespan or durability of the product?

Our product has an expected lifespan of 3 years and is designed to withstand heavy use in industrial environments.

What shipping documents before shipment

A: Dimension reports, some high tolerance parts with Zeiss CMM report
B: COC
C: Material cert
D: Some parts with hardness test report
E: some parts with salt spray test report

What's your payment terms?

We accept Western Union or Paypal for small account, big amount, T/T is preferred.

How about the transportation?

Samples by air (if not too heavy),otherwise by sea or air.

What is your company's policy on returns and refunds?

We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.

What is your company's experience and reputation in the industry?

Our company has been in business for 25 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
