Motorcycle Parts Machining: A Repeat-Order CNC Project at HKAA

HKAA is working on a repeat order for custom motorcycle components from a returning customer. The workshop photographs and video in this article show the parts during production. This motorcycle parts machining project provides a practical starting point for discussing the details that matter when an existing component returns for another manufacturing batch.

A repeat order brings an established design back into production, but it still requires a clear specification. Drawing revision, material requirements, mating features, finishing and inspection expectations should be confirmed for the new order rather than assumed from earlier work.

Real Project: Motorcycle Components for a Returning Customer

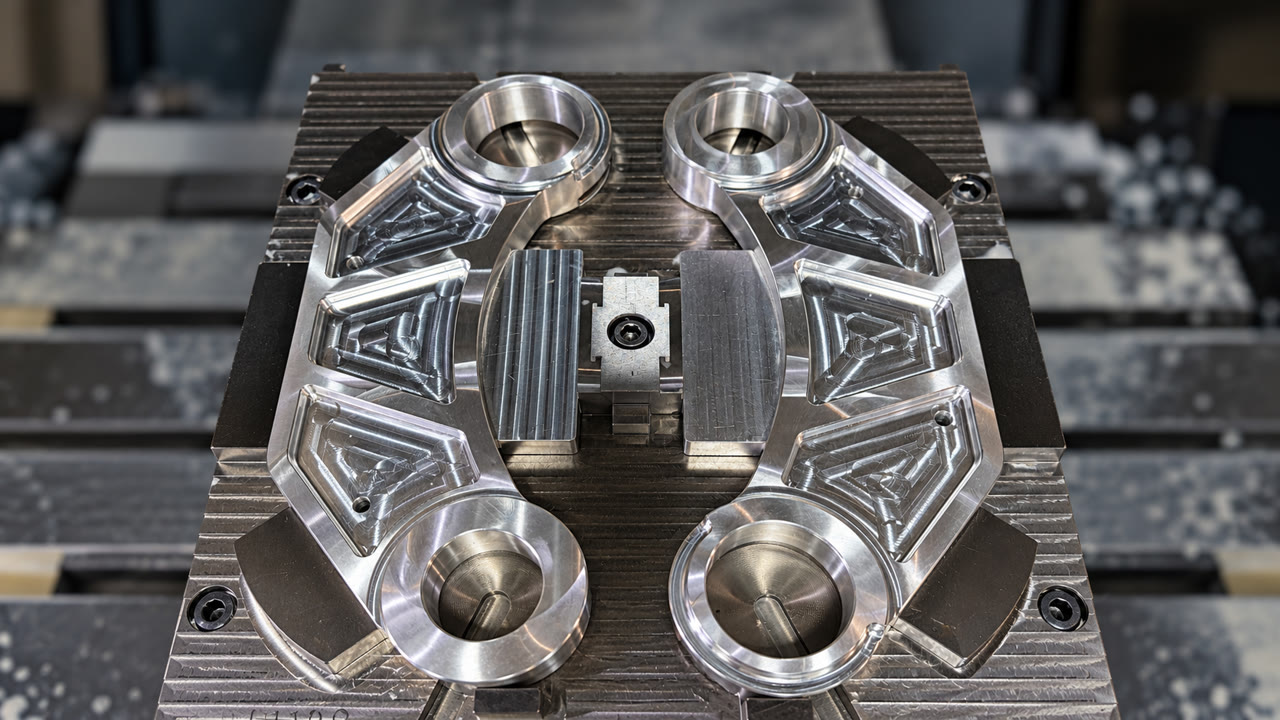

The project shown here is a genuine HKAA customer reorder for motorcycle parts. The photographs show two machined components held in a fixture, with prominent circular openings, recessed areas and smaller holes. Machining marks are visible on the surfaces, giving readers a view of the components in their production setting.

The images document workshop activity. They do not establish the material grade, dimensional acceptance, final surface treatment or the parts' exact installation location. Those requirements belong to the approved project documents. This case update focuses on the confirmed reorder and the visible machining features, without adding unverified performance figures.

Watch the Components in the Workshop

The supplied workshop video shows the same project from another viewpoint. Together with the original photographs, it gives a more direct view of the component geometry and production setup than a generic product illustration.

Start a Repeat Order with the Correct Revision

For buyers placing another order, the first step is to confirm whether the component remains unchanged. A matching part number alone may not describe changes to a hole, thread, edge condition or finishing instruction. The purchase order and drawing package should identify the controlling revision clearly.

If a previous sample or inspection report is relevant, identify its revision and purpose. A sample can support discussion, but the released drawing should define the manufacturing and acceptance requirements. Any discrepancy between the sample, model and drawing should be resolved before production.

Connect Machining Features to Assembly Requirements

The circular openings and recessed features visible in this project illustrate why a component's overall outline is only part of the specification. The drawing must define the size, position and relationship of features that affect assembly. It should also identify which surfaces establish the inspection references.

For motorcycle parts machining in general, buyers should distinguish locating features from clearance features and cosmetic surfaces. The required tolerance for each should follow its function. Do not apply a single capability value to every feature, or infer assembly suitability from a photograph.

CNC milling is relevant to profiles, recessed sections and hole patterns. Where a custom component includes separate cylindrical geometry, CNC turning may be reviewed as part of the proposed route. The process for each new part should follow its actual drawing.

Review Workholding and Tool Access

The photographs show the parts supported and held in a fixture. For a new machining project, workholding review should consider access to the required features, support around recessed areas and how the component will be located between operations. These are planning considerations rather than claims about an undocumented process sequence.

When geometry includes pockets or thin sections, a supplier may need to review support and material-removal strategy. Proposed design changes should be discussed with the customer and approved through revision control. A manufacturing review should preserve the intended interfaces while clarifying any difficult-to-access features.

Confirm Finishing and Inspection for the New Batch

Specify whether the next order requires an as-machined condition or a defined subsequent treatment. Identify protected surfaces, appearance criteria and the stage at which final dimensions will be accepted. The workshop surfaces shown here should not be interpreted as a promise of the final delivered finish.

Inspection requirements should connect the drawing to agreed methods and records. Depending on the design, these may involve opening dimensions, hole positions, surface relationships, threads and edge conditions. Agree on sampling, reporting and any first-article review before ordering. Photographs and video support communication; dimensional records support the specified acceptance checks.

What to Include in a Motorcycle Parts Machining RFQ

• The current 3D model, dimensioned drawing, part number and revision.
• Specified material grade and condition, with required documentation.
• Critical interfaces, datum references, threads and edge treatment.
• Finishing instructions and any masking or appearance requirements.
• Order quantity and whether the request is a new project or a repeat batch.
• Inspection reports, identification, handling and packaging requirements.

For a returning design, highlight any changes explicitly. For a new design, relevant assembly information can help explain the component's function without relying on assumptions. Ask the supplier to state quotation assumptions and the included process scope.

Frequently Asked Questions

Can HKAA review a repeat motorcycle component order?

Send the current drawing package, quantity and any changes from the previous order. Confirming the revision and acceptance requirements gives the team a clear basis for review.

Can tolerances be confirmed from the workshop photographs?

No. Tolerances and dimensional acceptance must be evaluated against the approved drawing and inspection requirements. The photographs show the production setting and visible features.

What information is needed for a new custom component?

Provide the model and drawing, material, quantity, finish and inspection scope. Identify the mating features or clearances that matter most to the assembly.

Discuss Your Motorcycle Parts Machining Project with HKAA

This returning-customer project shows real motorcycle components in HKAA's workshop. For a new design or repeat order, share your drawings, revision details and purchasing requirements so the machining and inspection scope can be reviewed. Clear project information creates a practical foundation for quotation and production planning.
