Index Plungers Compact with hexagon collar and locking 1

Index Plungers Compact with hexagon collar and locking 2

Index Plungers Compact with hexagon collar and locking 3

Index Plungers Compact with hexagon collar and locking 4

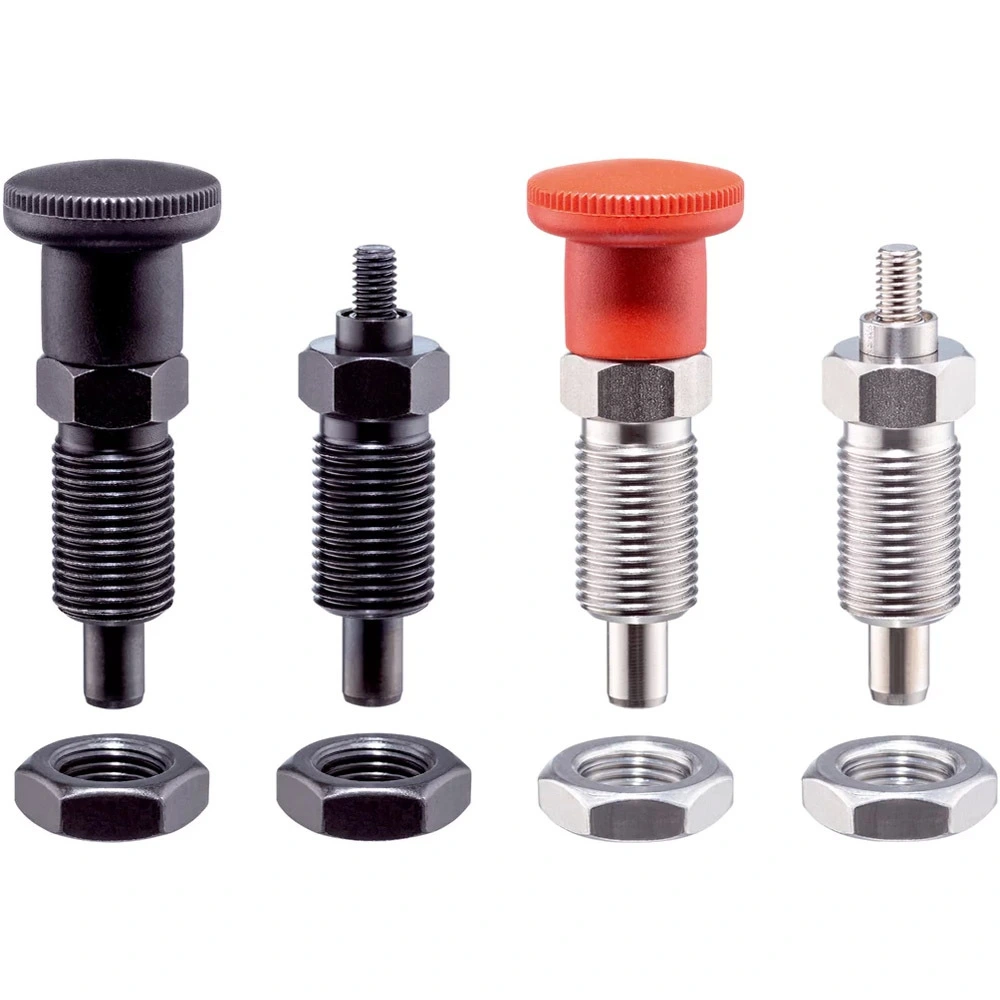

Index Plungers Compact with hexagon collar and locking

Application is limited to cases not requiring a precise positioning.

Simple finish with very small dimensions.

Index plungers are used for indexing bores.

Types with / without lock have the same building height.

Due to a thread recess the index plungers can be completely screwed in.

Stainless steel indexing pin hardened, ground and bright.Note:Premium indexing plungers are characterized by more stringent manufacturing requirements for the indexing plungers and threaded sleeve. In addition, a centring locator that can be used to increase the positioning accuracy is provided on the threaded sleeve. These indexing plungers are used when it is necessary to prevent shifting of the locked position by transverse forces and greater positioning accuracy is required. A new locking position can only be set after the pin has been manually disengaged. When high lateral forces are to be expected, the centring locator should be used.

Inquiry

Write a Review

Product Details

Index Plungers 5

Index Plungers 6

Index Plungers 7

Product Description

Index plungers are used for indexing bores.

The index plunger with sensor makes it possible to monitor the indexing position of the indexing plunger. When it engages, the sensor already switches after 2/3 of the indexing distance l2. In addition to the electronic signal, the switching status is indicated directly on the sensor via an LED.

Precision index plungers together with bushings are a perfect combination for quick positioning and mounting.

The precise tolerance of both, the precision index plunger and the bushing, guarantees a high repeatability of these two elements.

For precise adjustment, the grip ball and plunger should be glued grease-free after assembly.

Index plungers with throughgoing bore for thin-walled pieces.
