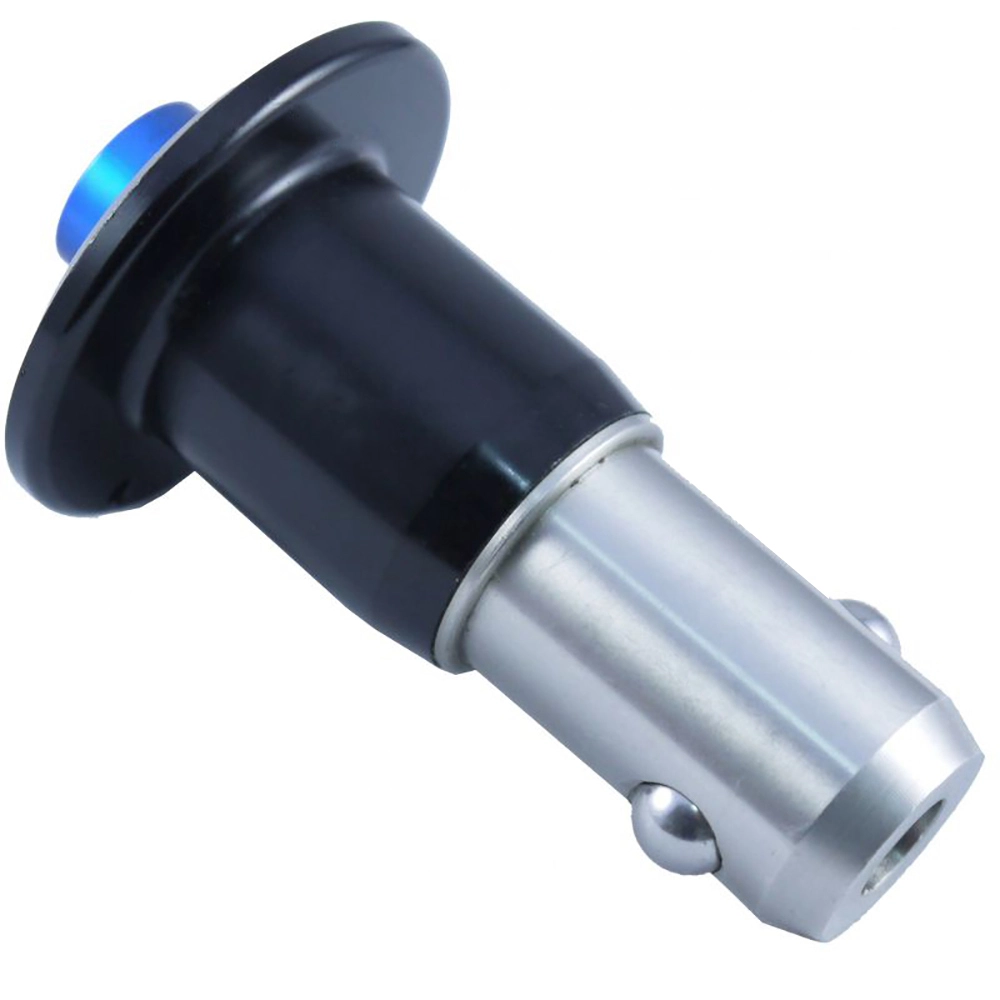

B Handle Button Quick Release Ball Lock Pin

Quick Release Ball Lock Pin, also referred to as Clamp Lock Pins with button handle for rapid fastening, locking, adjusting, replacing, and securing in blind holes without additional locating bushings.

Quick and easy to release for connections which are made repeatedly. Flexible use because the balls are clamped between bolt and hole.

All versions are corrosion resistant. When using stainless steel 1.4542: high-strength, hardened, abrasion resistant pin with high load capacity.

HKAA Metric Push Button Handle Quick Release Pins are known for their exceptional versatility and user-friendly design. They find application across a spectrum of industries, including aerospace, automotive, manufacturing, and machinery. Their robust construction and consistent performance establish them as the preferred choice among engineers and technicians alike.

Inquiry

Write a Review

Product Details

Product Parameters

Metric Push Button Quick Release Pins, also referred to as ball lock or pip pins, are mechanical components meticulously engineered to securely fasten and stabilize various parts within industrial settings.

These engineered pins feature a push button handle mechanism, facilitating rapid and effortless installation as well as removal. The metric measurement refer to the pin's size - length and diameter which are available in a range of standard sizes.

Additionally, HKAA offers this product customized various imperial measurements.

Product Features

● Handle is black aluminum.

● Button is blue aluminum.

● Shank is carbon steel.

● Includes hole and split ring for easy attachment of optional lanyard.

● Customization is available.

● Four ball option is available upon request.

● Meets or exceeds NASM 23460 specification.

installation examples (3)

FAQ

How can I customize my products?

Attach your drawings with details(Surface treatment,material,quantity and special requirements etc).

How long can I get the quote?

We will give you the quotation within 24 hours(Considering the time difference).

How can I get a sample for testing?

We will offer free or charged samples depends on the products.

How long will you produce the parts?

Normally three weeks,we will arrange the produce schedule depends on the quantity and the delivery.

What is the expected lifespan or durability of the product?

Our product has an expected lifespan of 3 years and is designed to withstand heavy use in industrial environments.

What shipping documents before shipment

A: Dimension reports, some high tolerance parts with Zeiss CMM report B: COC C: material cert D: some parts with hardness test report E: some parts with salt spray test report

What's your payment terms?

We accept Western Union or Paypal for small account, big amount, T/T is preferred.

How about the transportation?

Samples by air (if not too heavy),otherwise by sea or air.

What is your company's policy on returns and refunds?

We have a flexible returns and refunds policy that allows customers to return products within 30 days of purchase for a full refund or exchange. We also offer warranties on our products to ensure customer satisfaction.

What is your company's experience and reputation in the industry?

Our company has been in business for 25 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
